Peter Lau

Bill Chun Wai Hung

Lab 13 Report – S3 Logic Gate

8 August 2004

A. Describe the Set-up

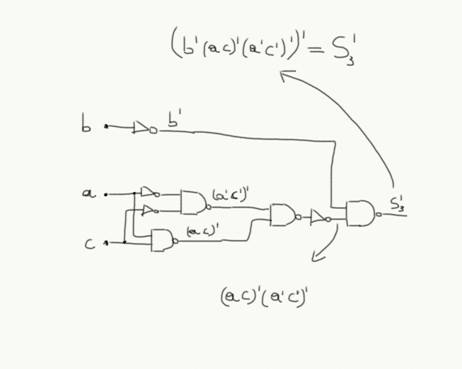

The Circuit setup is shown in figure 1.



Figure 1

B1. Describe Inputs

Stimuli:

DC 5V



4 Inverters: 7404

4 Nand Gates: 7400



Table 1

a b c | S3
0 0 0 | 1
0 0 1 | 0
0 1 0 | 1
0 1 1 | 1
1 0 0 | 0
1 0 1 | 1
1 1 0 | 1
1 1 1 | 1



S3 = b + a'c' + ac



C. Describe What you Observe

The LED lit up when the S3 value indicated in Table 1 is 1, and the LED is off when the S3 value indicated in Table 1 is 0.



D. What you can deduce

The Boolean formula from the lecture was right, and the table 1 logic is right for the circuit shown in figure 1.



The logic works according to table 1.



Q1) If you had  only 3 nand gates, how would you have connected the LED and the resistor to S3 in order to obtain the same result?



This questions is completely ignored.
